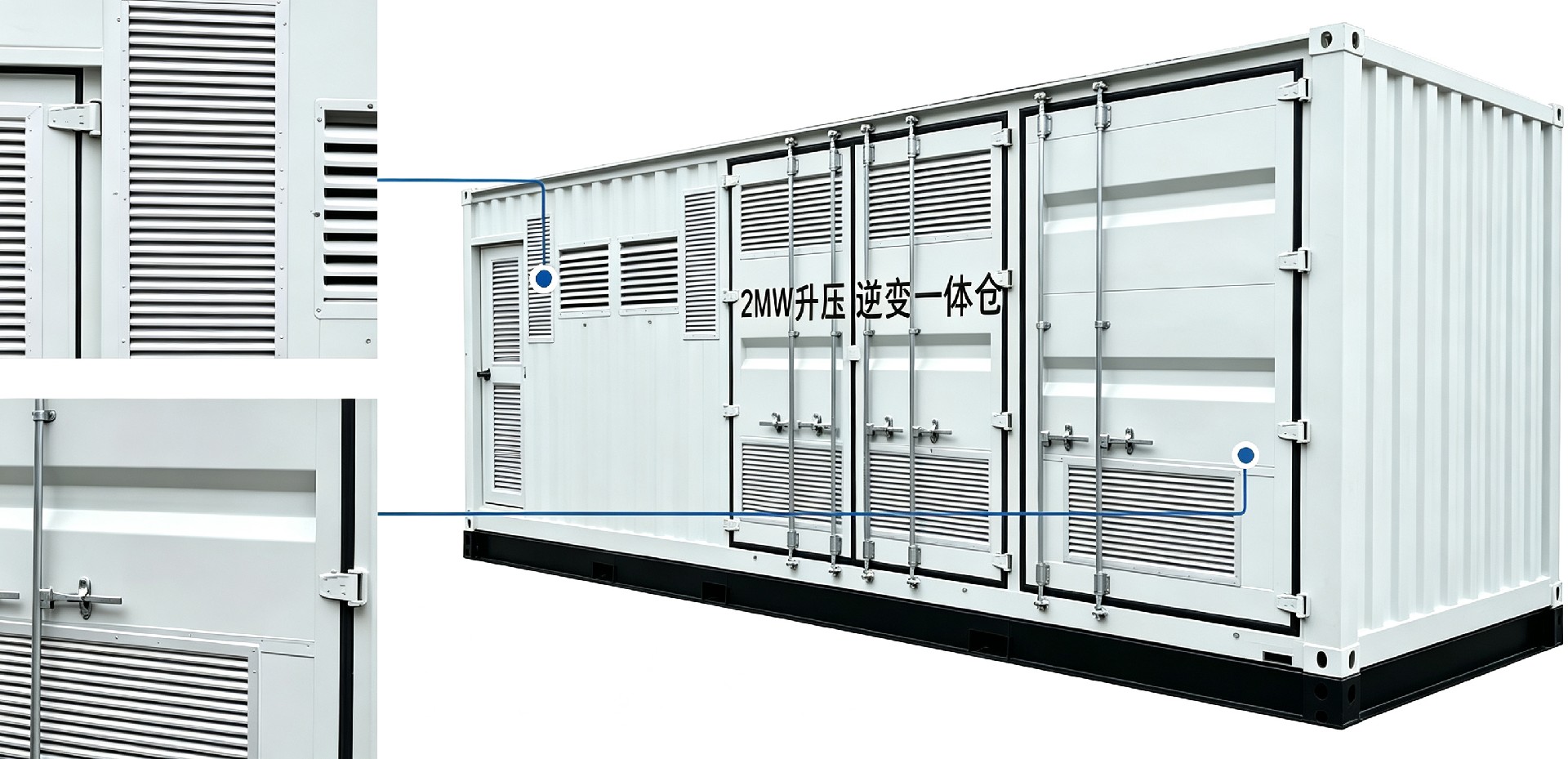

The inverter-step-up integrated box-type substation is substation-grade equipment for photovoltaic power generation systems, realizing DC-AC inversion and AC voltage boost. It overcomes the disadvantages of large-volume construction and high energy consumption caused by separate configuration of inverters and boosting devices.This integrated box-type substation consists of low-voltage compartment, high-voltage compartment and transformer compartment. Low-voltage and high-voltage units adopt front-and-back layout, and the transformer unit can be arranged on either side.On the low-voltage side, DC power generated by PV modules is collected and inverted into AC power. The boosting module converts low-voltage AC into high-voltage AC. The high-voltage compartment completes electrical protection and metering work.The whole device inverts and boosts the electric energy from photovoltaic modules to output stable and available grid-connected power.Core Advantages

- Factory pre-assembly, short on-site installation cycle

- High-degree integration, saving land occupation

- Complete protection & metering functions

- Convenient transportation and flexible layout for PV stations
