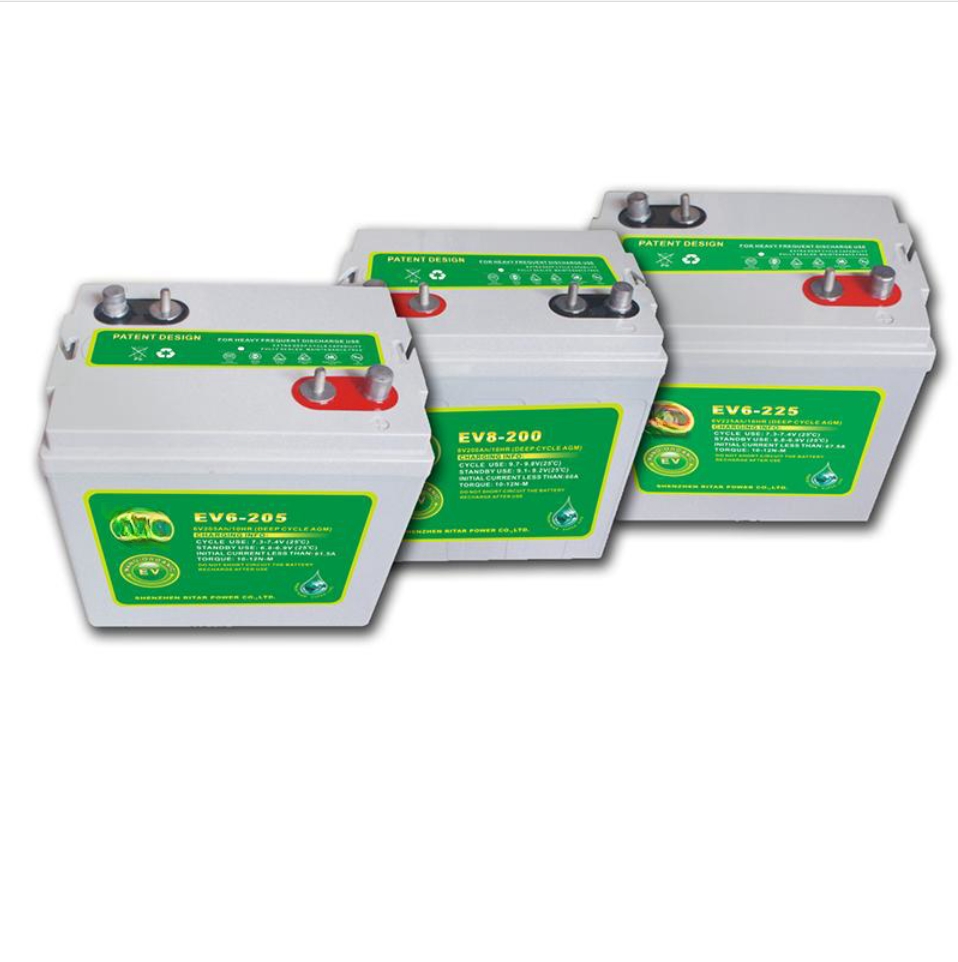

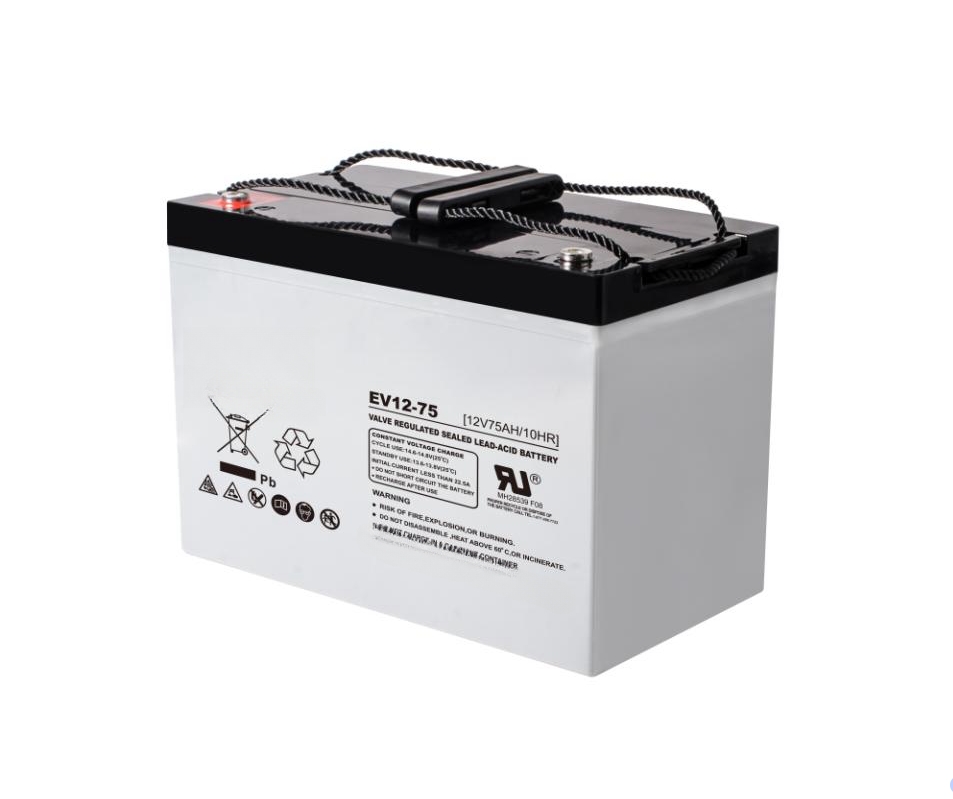

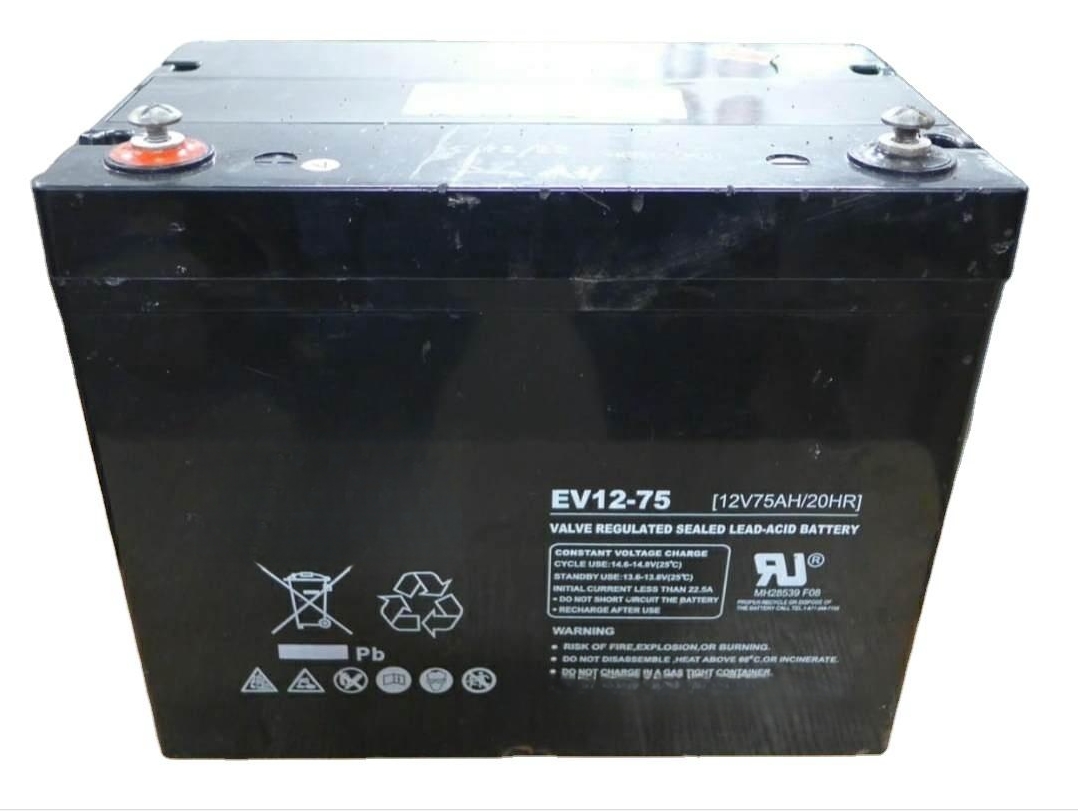

Electric Vehicle VRLA Batteries
Electric Vehicle series is specially designed for frequent deep cycle discharge. By using the specially designed active material and strong grids, the EV series sealed lead acid battery offers reliable performance in high load situations and can deliver more than 300 cycles at 100% DOD. Suitable for mobility scooters, electric wheel chairs, golf buggies etc.
Product Details
Electric Vehicle series is specially designed for frequent deep cycle discharge. By using the specially designed active material and strong grids, the EV series sealed lead acid battery offers reliable performance in high load situations and can deliver more than 300 cycles at 100% DOD. Suitable for mobility scooters, electric wheel chairs, golf buggies etc.
Technical Specifications
Model Nominal Voltage Capacity Dimension （Ah） Length Width Height Total Height （V） mm inch mm inch mm inch mm inch LJ12-10 12 10 C20/1.75VPC 151 5.94 98 3.86 95 3.74 101 3.98 LJ12-12 12 12 C20/1.75VPC 151 5.94 98 3.86 95 3.74 101 3.98 LJ12-14 12 14 C20/1.75VPC 151 5.94 98 3.86 99 3.90 105 4.13 LJ12-18 12 18 C20/1.75VPC 181 7.13 77 3.03 167 6.57 167 6.57 LJ12-22 12 22 C20/1.75VPC 181 7.13 77 3.03 167 6.57 167 6.57 LJ12-22 12 22 C20/1.75VPC 181 7.13 77 3.03 170 6.69 170 6.69 LJ12-24 12 24 C20/1.75VPC 182.5 7.19 78.5 3.09 170 6.69 170 6.69 LJ12-24X 12 24 C20/1.75VPC 181 7.13 77 3.03 170 6.69 170 6.69 LJ12-26 12 26 C20/1.75VPC 166 6.54 176 6.93 125 4.92 125 4.92 LJ6-180 6 180 C20/1.75VPC 306 12.05 168 6.61 220 8.66 227 8.94 LJ6-200S 6 200 C20/1.75VPC 306 12.05 168 6.61 220 8.66 227 8.94 LJ6-200 6 200 C20/1.75VPC 322 12.68 177.5 6.99 226 8.90 231 9.09 LJ6-205 6 205 C20/1.75VPC 260 10.24 180 7.09 245 9.65 264 10.39 LJ6-225S 6 225 C20/1.75VPC 260 10.24 180 7.09 245 9.65 264 10.39 LJ6-210 6 210 C20/1.75VPC 322 12.68 177.5 6.99 226 8.90 231 9.09 LJ6-220 6 220 C20/1.75VPC 306 12.05 168 6.61 220 8.66 227 8.94 LJ6-225 6 225 C20/1.75VPC 260 10.24 180 7.09 263 10.35 282 11.10 LJ6-240 6 240 C20/1.75VPC 260 10.24 180 7.09 263 10.35 282 11.10 LJ6-310 6 310 C20/1.75VPC 295 11.61 178 7.01 346 13.62 364 14.33 LJ6-335 6 335 C20/1.75VPC 295 11.61 178 7.01 346 13.62 364 14.33 LJ6-400 6 400 C20/1.75VPC 295 11.61 178 7.01 404 15.91 423 16.65 LJ8-170 8 170 C20/1.75VPC 260 10.24 182 7.17 295 11.61 314 12.36 LJ8-170S 8 170 C20/1.75VPC 260 10.24 182 7.17 267 10.51 272 10.71 LJ8-200 8 200 C20/1.75VPC 260 10.24 182 7.17 295 11.61 314 12.36 LJ12-33 12 33 C20/1.75VPC 195 7.68 130 5.12 155 6.10 168 6.61 LJ12-33H 12 33 C20/1.75VPC 195 7.68 130 5.12 155 6.10 168 6.61 LJ12-45 12 45 C20/1.75VPC 198 7.80 166 6.54 169 6.65 169 6.65 LJ12-55 12 55 C20/1.75VPC 229 9.02 138 5.43 211 8.31 216 8.50 LJ12-75 12 75 C20/1.75VPC 260 10.24 169 6.65 211 8.31 216 8.50 LJ12-90S 12 90 C20/1.75VPC 260 10.24 169 6.65 211 8.31 216 8.50 LJ12-100S 12 100 C20/1.75VPC 306.5 12.07 168.5 6.63 210 8.27 215 8.46 LJ12-100 12 100 C20/1.75VPC 328 12.91 172 6.77 215 8.46 220 8.66 LJ12-110 12 110 C20/1.75VPC 328 12.91 172 6.77 215 8.46 220 8.66 LJ12-120 12 120 C20/1.75VPC 407 16.02 177 6.97 225 8.86 225 8.86 LJ12-150 12 150 C20/1.75VPC 483 19.02 170 6.69 241 9.49 242 9.53 LJ12-150S 12 150 C20/1.75VPC 327 12.87 180 7.09 271 10.67 273 10.75 LJ12-180 12 180 C20/1.75VPC 532 20.94 207 8.15 214 8.43 219 8.62 LJ12-180S 12 180 C20/1.75VPC 483 19.02 170 6.69 241 9.49 242 9.53 LJ12-200 12 200 C20/1.75VPC 522 20.55 240 9.45 219 8.62 224 8.82 LJ12-215 12 215 C20/1.75VPC 382 15.04 179 7.05 351 13.82 370 14.57 LJ12-215S 12 215 C20/1.75VPC 382 15.04 179 7.05 351 13.82 370 14.57 LJ12-240 12 240 C20/1.75VPC 522 20.55 240 9.45 219 8.62 224 8.82 LJ12-280 12 280 C20/1.75VPC 521 20.51 268 10.55 220 8.66 225 8.86 LJ12-300 12 300 C20/1.75VPC 521 20.51 268 10.55 220 8.66 225 8.86
