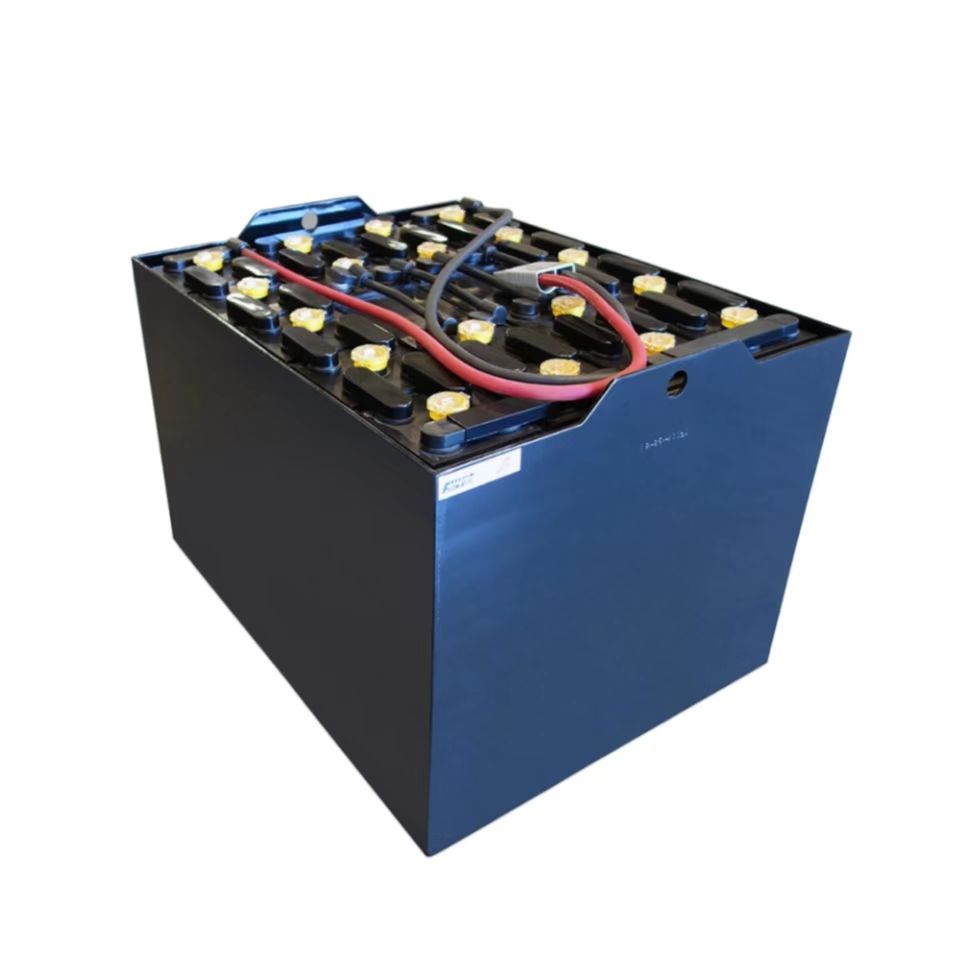

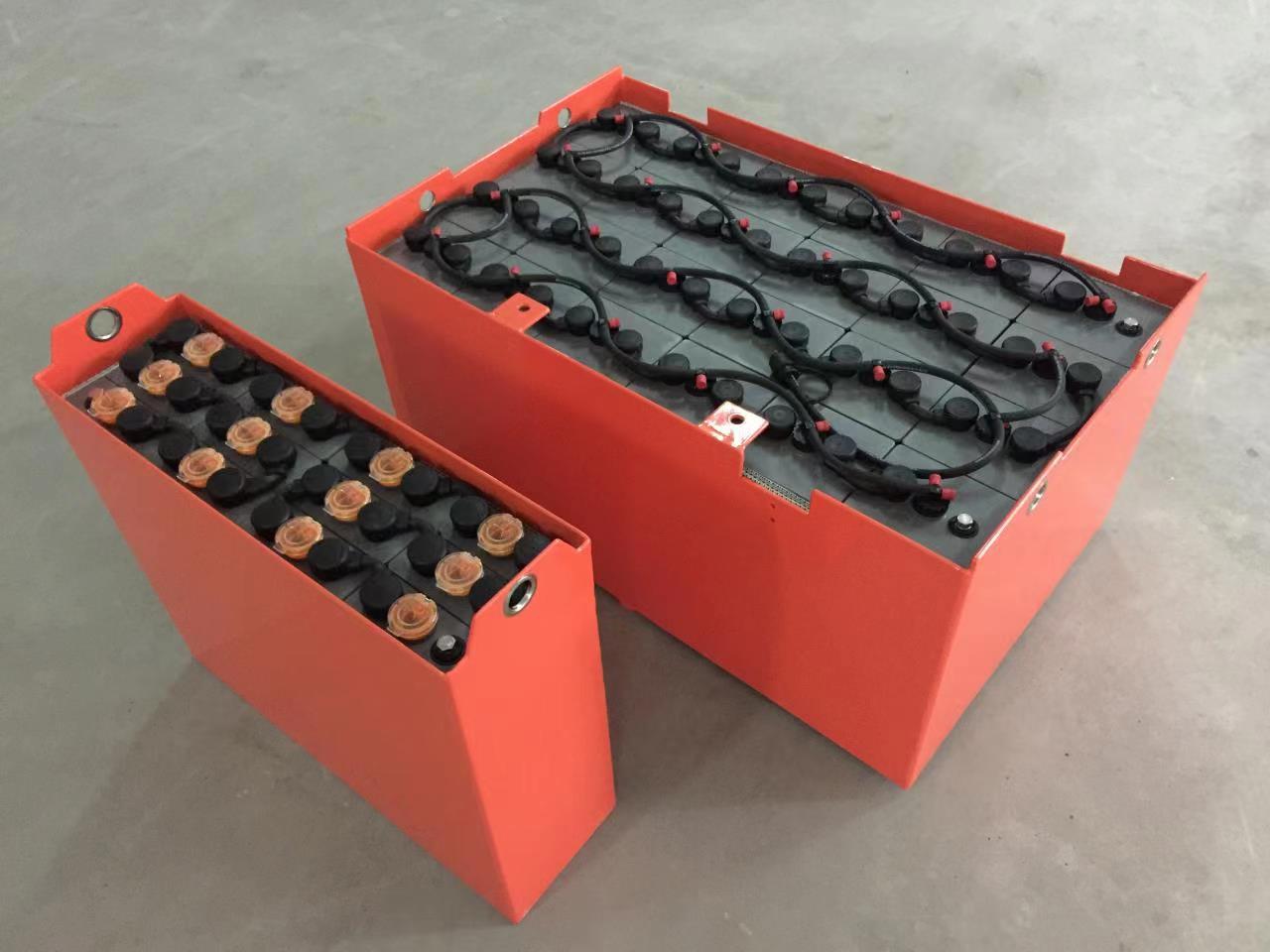

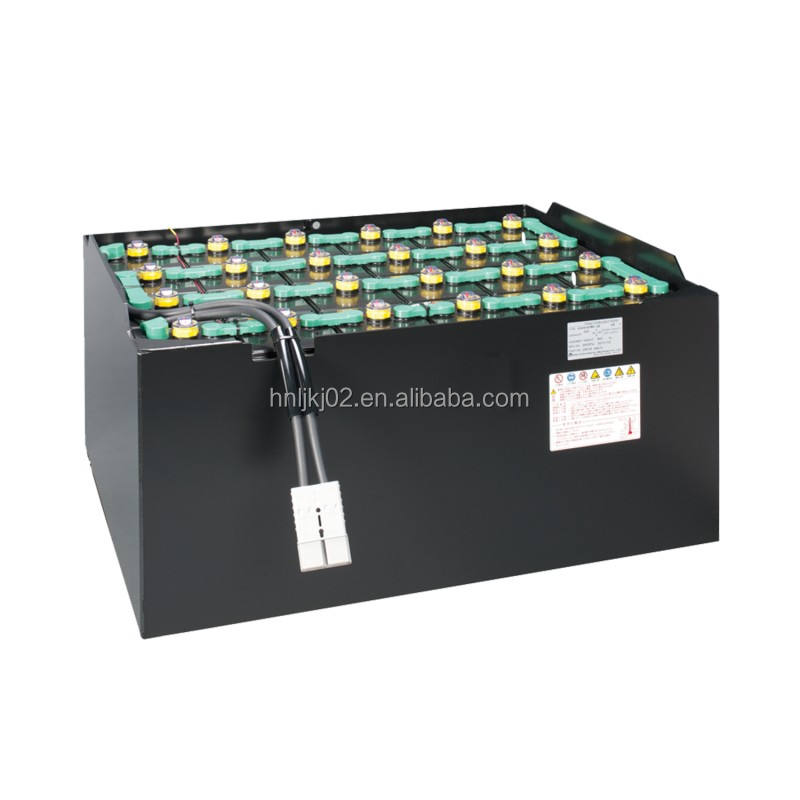

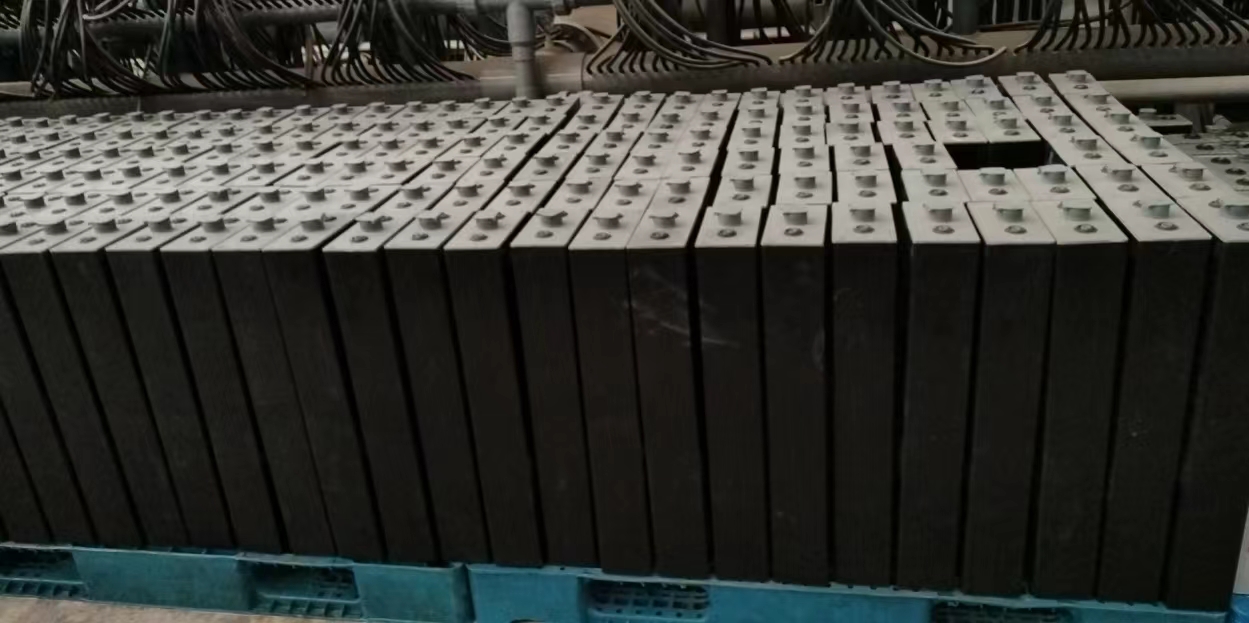

DIN Traction Series (PzS) Traction Batteries (DIN Standard)

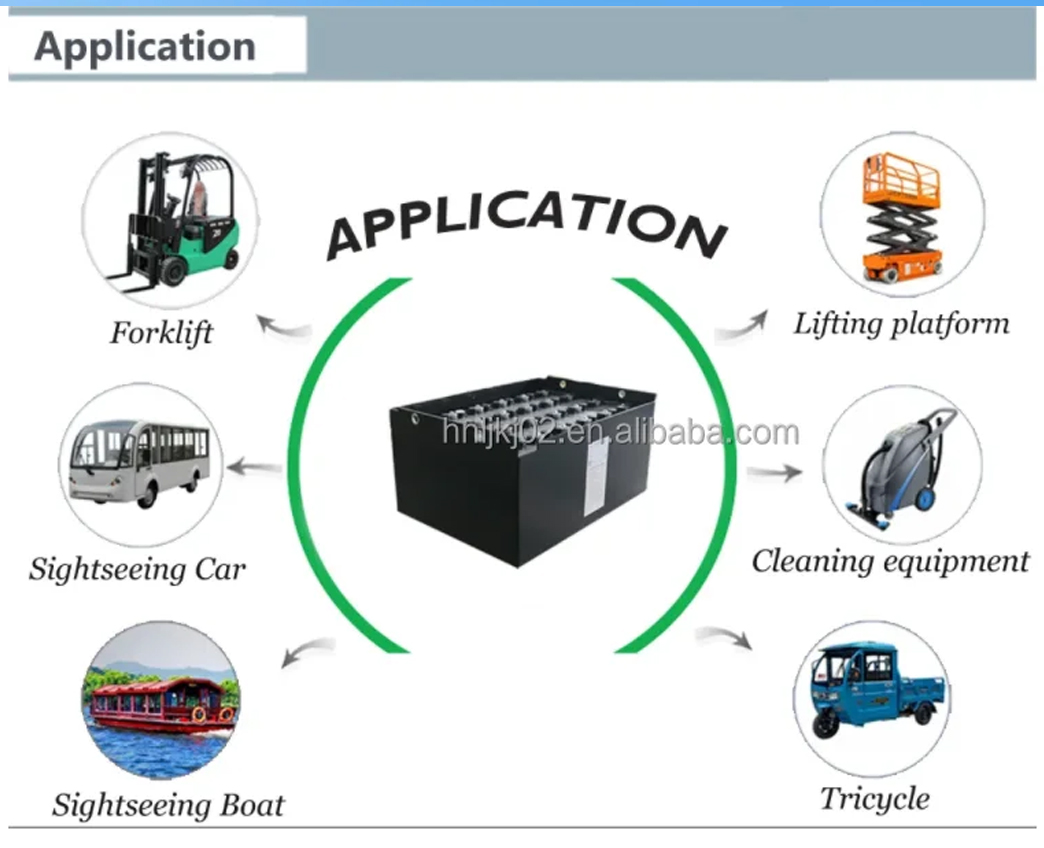

Featured by large capacity, good sealing performance and long service life, the PzS Series traction battery (DIN Standard) is provided with powder irrigation type positive plate and high-strength plastic shell with heat sealing structure. It is mainly used as DC power supply and lighting source for forklifts, mine battery tractors and battery cars in ports, docks, stations or warehouses and other equipment or places, where DC power supply is needed.
Product Details
Featured by large capacity, good sealing performance and long service life, the PzS Series traction battery (DIN Standard) is provided with powder irrigation type positive plate and high-strength plastic shell with heat sealing structure. It is mainly used as DC power supply and lighting source for forklifts, mine battery tractors and battery cars in ports, docks, stations or warehouses and other equipment or places, where DC power supply is needed.
Model | Voltage | Capacity(5hr) | Weight | Terminal Quantity | Terminal Type | Dimension | |
(V) | (Ah) | Without Electrolyte | With Electrolyte | L*W*H(HT) | |||
Kg | Kg | mm | |||||
2PZS120 | 2 | 120 | / | / | 2 | D2&D4 | 47*198*345(375) |
3PZS180 | 2 | 180 | / | / | 2 | D2&D4 | 65*198*340(370) |
4PZS240 | 2 | 240 | / | / | 2 | D2&D4 | 83*198*345(375) |
5PZS300 | 2 | 300 | / | / | 2 | D2&D4 | 101*198*345(375) |
6PZS360 | 2 | 360 | / | / | 2 | D2&D4 | 119*198*345(375) |
7PZS420-2 | 2 | 420 | / | / | 2 | D2&D4 | 137*198*345(375) |
7PZS420-4 | 2 | 420 | / | / | 4 | D2&D4 | 137*198*345(375) |
8PZS480 | 2 | 480 | / | / | 4 | D2&D4 | 155*198*345(375) |
9PZS540 | 2 | 540 | / | / | 4 | D2&D4 | 174*198*3345(375) |
10PZS600 | 2 | 600 | / | / | 4 | D2&D4 | 192*198*345(375) |
2PZS160 | 2 | 160 | / | / | 2 | D2&D4 | 47*198*405(435) |
3PZS240 | 2 | 240 | / | / | 2 | D2&D4 | 65*198*405(435) |
4PZS320 | 2 | 320 | / | / | 2 | D2&D4 | 83*198*405(435) |
5PZS400 | 2 | 400 | / | / | 2 | D2&D4 | 101*198*405(435) |
6PZS480 | 2 | 480 | / | / | 2 | D2&D4 | 119*198*405(435) |
7PZS560-2 | 2 | 560 | / | / | 2 | D2&D4 | 137*198*405(435) |
7PZS560-4 | 2 | 560 | / | / | 4 | D2&D4 | 137*198*405(435) |
8PZS640 | 2 | 640 | / | / | 4 | D2&D4 | 155*198*405(435) |
9PZS720 | 2 | 720 | / | / | 4 | D2&D4 | 174*198*405(435) |
10PZS800 | 2 | 800 | / | / | 4 | D2&D4 | 192*198*405(435) |
2PZS180 | 2 | 180 | / | / | 2 | D2&D4 | 47*198*475(505) |
3PZS270 | 2 | 270 | / | / | 2 | D2&D4 | 65*198*475(505) |
4PZS360 | 2 | 360 | / | / | 2 | D2&D4 | 83*198*475(505) |
5PZS450 | 2 | 450 | / | / | 2 | D2&D4 | 101*198*475(505) |
6PZS540 | 2 | 540 | / | / | 2 | D2&D4 | 119*198*475(505) |
7PZS630-2 | 2 | 630 | / | / | 2 | D2&D4 | 137*198*475(505) |
7PZS630-4 | 2 | 630 | / | / | 4 | D2&D4 | 137*198*475(505) |
8PZS720 | 2 | 720 | / | / | 4 | D2&D4 | 155*198*475(505) |
9PZS810 | 2 | 810 | / | / | 4 | D2&D4 | 174*198*475(505) |
10PZS900 | 2 | 900 | / | / | 4 | D2&D4 | 192*198*475(505) |
2PZS210 | 2 | 210 | / | / | 2 | D2&D4 | 47*198*519(549) |
3PZS315 | 2 | 315 | / | / | 2 | D2&D4 | 65*198*519(549) |
4PZS420 | 2 | 420 | / | / | 2 | D2&D4 | 83*198*519(549) |
5PZS525 | 2 | 525 | / | / | 2 | D2&D4 | 101*198*519(549) |
6PZS630 | 2 | 630 | / | / | 2 | D2&D4 | 119*198*519(549) |
7PZS735-2 | 2 | 735 | / | / | 2 | D2&D4 | 137*198*519(549) |
7PZS735-4 | 2 | 735 | / | / | 4 | D2&D4 | 137*198*519(549) |
8PZS840 | 2 | 840 | / | / | 4 | D2&D4 | 155*198*519(549) |
9PZS945 | 2 | 945 | / | / | 4 | D2&D4 | 174*198*519(549) |
10PZS1050 | 2 | 1050 | / | / | 4 | D2&D4 | 192*198*519(549) |
2PZS230 | 2 | 230 | / | / | 2 | D2&D4 | 47*198*545(575) |
3PZS345 | 2 | 345 | / | / | 2 | D2&D4 | 65*198*545(575) |
4PZS460 | 2 | 460 | / | / | 2 | D2&D4 | 83*198*545(575) |
5PZS575 | 2 | 575 | / | / | 2 | D2&D4 | 101*198*545(575) |
6PZS690 | 2 | 690 | / | / | 2 | D2&D4 | 119*198*545(575) |
7PZS805-2 | 2 | 805 | / | / | 2 | D2&D4 | 137*198*545(575) |
7PZS805-4 | 2 | 805 | / | / | 4 | D2&D4 | 137*198*545(575) |
8PZS920 | 2 | 920 | / | / | 4 | D2&D4 | 155*198*545(575) |
9PZS1035 | 2 | 1035 | / | / | 4 | D2&D4 | 174*198*545(575) |
10PZS1150 | 2 | 1150 | / | / | 4 | D2&D4 | 192*198*545(575) |
2PZS250 | 2 | 250 | / | / | 2 | D2&D4 | 47*198*570(600) |
3PZS375 | 2 | 375 | / | / | 2 | D2&D4 | 65*198*570(600) |
4PZS500 | 2 | 500 | / | / | 2 | D2&D4 | 83*198*570(600) |
5PZS625 | 2 | 625 | / | / | 2 | D2&D4 | 101*198*570(600) |
6PZS750 | 2 | 750 | / | / | 2 | D2&D4 | 119*198*570(600) |
7PZS875-2 | 2 | 875 | / | / | 2 | D2&D4 | 137*198*570(600) |
7PZS875-4 | 2 | 875 | / | / | 4 | D2&D4 | 137*198*570(600) |
8PZS1000 | 2 | 1000 | / | / | 4 | D2&D4 | 155*198*570(600) |
9PZS1125 | 2 | 1125 | / | / | 4 | D2&D4 | 174*198*570(600) |
10PZS1250 | 2 | 1250 | / | / | 4 | D2&D4 | 192*198*570(600) |
2PZS280 | 2 | 280 | / | / | 2 | D2&D4 | 47*198*685(715) |
3PZS420 | 2 | 420 | / | / | 2 | D2&D4 | 65*198*685(715) |
4PZS560 | 2 | 560 | / | / | 2 | D2&D4 | 83*198*685(715) |
5PZS700 | 2 | 700 | / | / | 2 | D2&D4 | 101*198*685(715) |
6PZS840 | 2 | 840 | / | / | 2 | D2&D4 | 119*198*685(715) |
7PZS980-2 | 2 | 980 | / | / | 2 | D2&D4 | 137*198*685(715) |
7PZS980-4 | 2 | 980 | / | / | 4 | D2&D4 | 137*198*685(715) |
8PZS1120 | 2 | 1120 | / | / | 4 | D2&D4 | 155*198*685(715) |
9PZS1260 | 2 | 1260 | / | / | 4 | D2&D4 | 174*198*685(715) |
10PZS1400 | 2 | 1400 | / | / | 4 | D2&D4 | 192*198*685(715) |
2PZS310 | 2 | 310 | / | / | 2 | D2&D4 | 47*198*720(750) |
3PZS465 | 2 | 465 | / | / | 2 | D2&D4 | 65*198*720(750) |
4PZS620 | 2 | 620 | / | / | 2 | D2&D4 | 83*198*720(750) |
5PZS775 | 2 | 775 | / | / | 2 | D2&D4 | 101*198*720(750) |
6PZS930 | 2 | 930 | / | / | 2 | D2&D4 | 119*198*720(750) |
7PZS1085-2 | 2 | 1085 | / | / | 2 | D2&D4 | 137*198*720(750) |
7PZS1085-4 | 2 | 1085 | / | / | 4 | D2&D4 | 137*198*720(750) |
8PZS1240 | 2 | 1240 | / | / | 4 | D2&D4 | 155*198*720(750) |
9PZS1395 | 2 | 1395 | / | / | 4 | D2&D4 | 174*198*720(750) |
10PZS1550 | 2 | 1550 | / | / | 4 | D2&D4 | 192*198*720(750) |

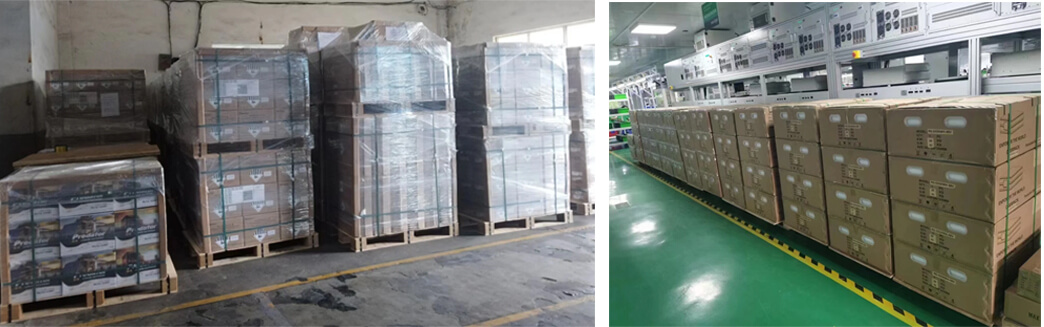

Packing:

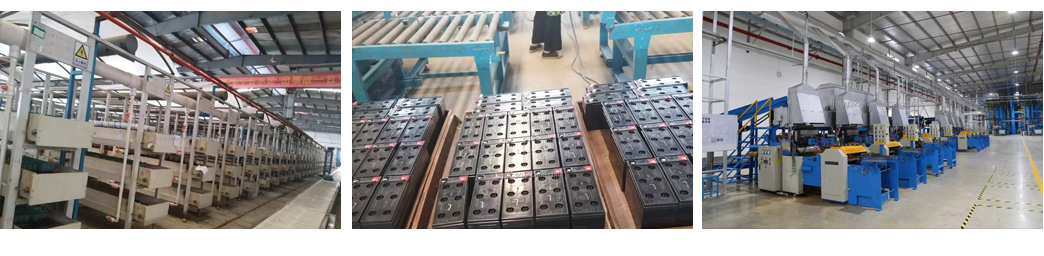

Company Profile:
