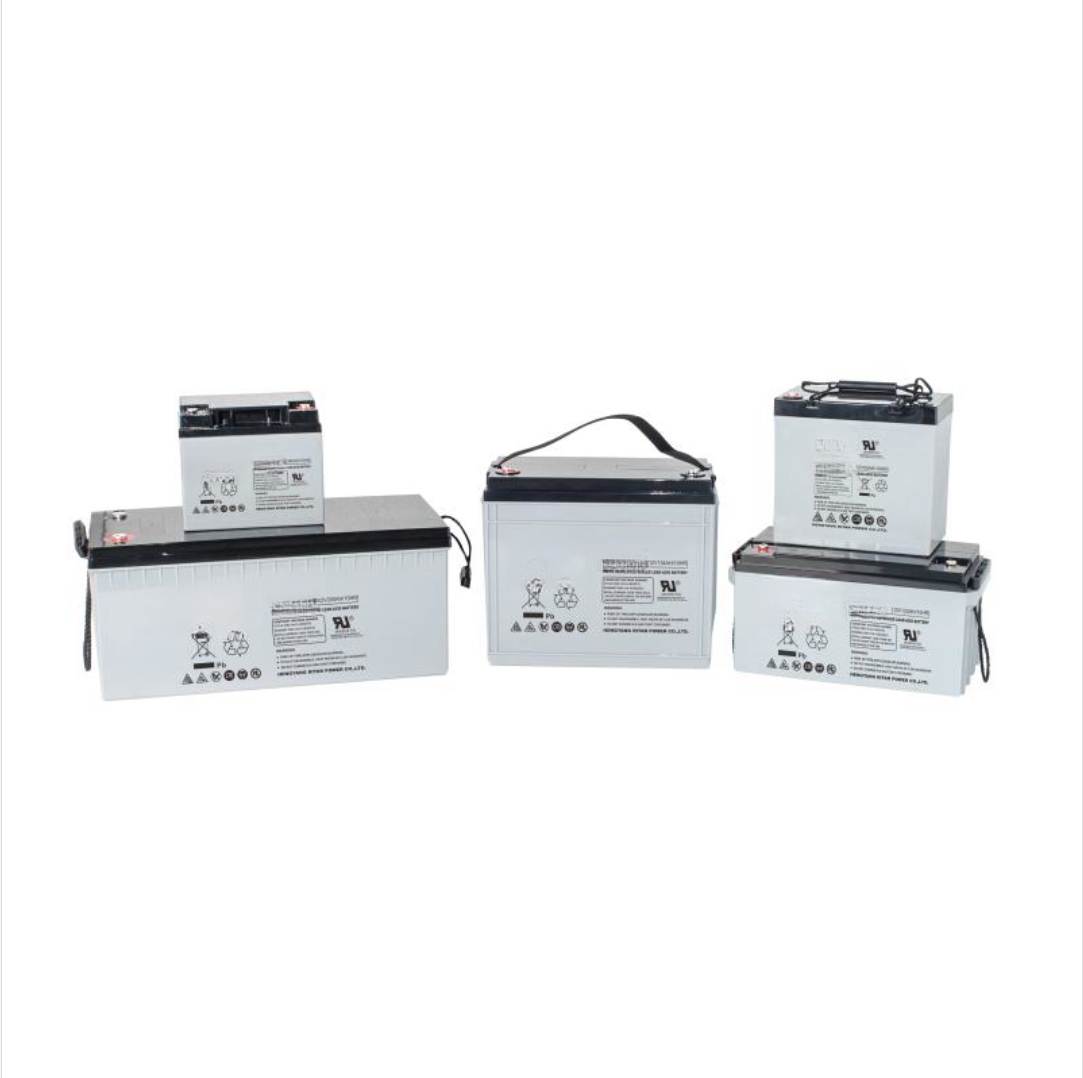

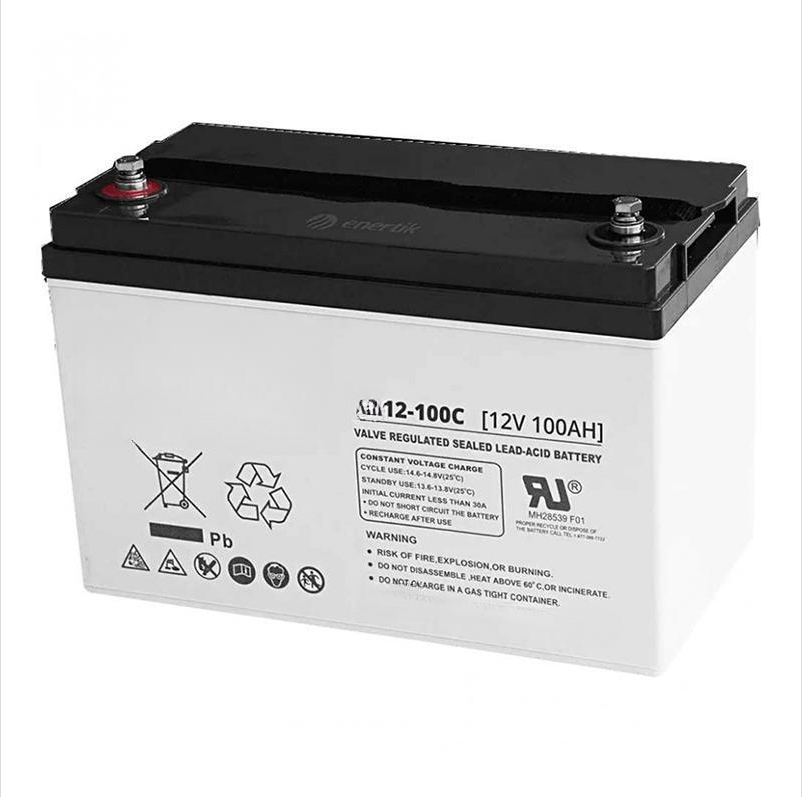

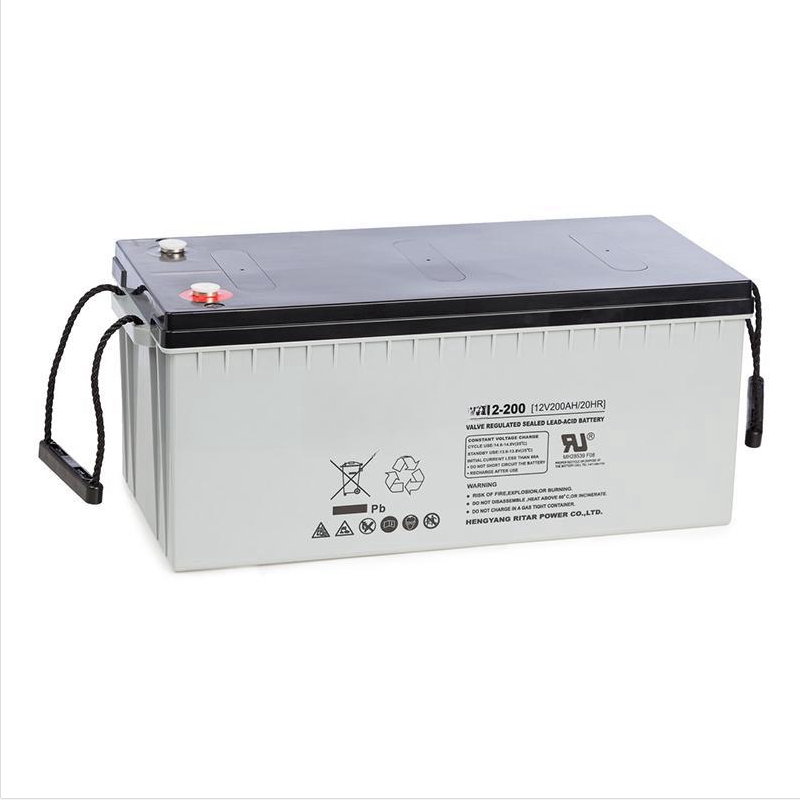

AGM Deep Cycle VRLA Batteries
AGM Deep Cycle series is specially designed for frequent cyclic discharge. By using strong grids and specially designed active material, the DC series battery offers 30% more cyclic life than the standby series. It is suitable for UPS, solar & wind energy, telecom system, electric power system, electric vehicles, golf cars, etc.
Product Details
Voltage class: 2V/6V/12V
Capacity range: 26Ah~3000Ah
Superior deep cycle design
Suitable for solar & wind energy, UPS, telecom systems, electric power systems, control systems, golf cars, etc.
AGM Deep Cycle series is specially designed for frequent cyclic discharge. By using strong grids and specially designed active material, the DC series battery offers 30% more cyclic life than the standby series. It is suitable for UPS, solar & wind energy, telecom system, electric power system, electric vehicles, golf cars, etc.
| Model | Nominal Voltage | Capacity | Dimension | Terminal | ||||||||
| （Ah） | Length | Width | Height | Total Height | ||||||||
| （V） | mm | inch | mm | inch | mm | inch | mm | inch | ||||
| LJ12-40A | 12 | 40 | C20/1.75VPC | 198 | 7.80 | 166 | 6.54 | 169 | 6.65 | 169 | 6.65 | F4(M5) / F11(M6) |
| LJ12-40A | 12 | 40 | C20/1.75VPC | 198 | 7.80 | 166 | 6.54 | 169 | 6.65 | 169 | 6.65 | F4(M5) / F11(M6) |
| LJ12-40A | 12 | 40 | C20/1.75VPC | 198 | 7.80 | 166 | 6.54 | 169 | 6.65 | 169 | 6.65 | F4(M5) / F11(M6) |
| LJ12-40A | 12 | 40 | C20/1.75VPC | 198 | 7.80 | 166 | 6.54 | 169 | 6.65 | 169 | 6.65 | F4(M5) / F11(M6) |
| LJ12-40A | 12 | 40 | C20/1.75VPC | 198 | 7.80 | 166 | 6.54 | 169 | 6.65 | 169 | 6.65 | F4(M5) / F11(M6) |
| LJ12-26 | 12 | 26 | C20/1.75VPC | 166 | 6.54 | 176 | 6.93 | 125 | 4.92 | 125 | 4.92 | F3(M5) / F13-BP(M5)/T24(M5) |
| LJ12-26S | 12 | 26 | C20/1.75VPC | 165 | 6.50 | 125 | 4.92 | 174 | 6.85 | 174 | 6.85 | F7(M8) / F11(M6) |
LJ12-28S | 12 | 28 | C20/1.75VPC | 165 | 6.50 | 125 | 4.92 | 174 | 6.85 | 174 | 6.85 | F7(M8) / F11(M6) |
| LJ6-180 | 6 | 180 | C20/1.75VPC | 306 | 12.05 | 168 | 6.61 | 220 | 8.66 | 227 | 8.94 | F12(M8) |
| LJ6-200 | 6 | 200 | C20/1.75VPC | 322 | 12.68 | 177.5 | 6.99 | 226 | 8.90 | 231 | 9.09 | F16(M8) / F14(M8) |
| LJ6-225 | 6 | 225 | C20/1.75VPC | 322 | 12.68 | 177.5 | 6.99 | 226 | 8.90 | 231 | 9.09 | F16(M8) / F14(M8) |
| LJ6-225S | 6 | 225 | C20/1.75VPC | 243 | 9.57 | 187 | 7.36 | 275 | 10.83 | 275 | 10.83 | F14(M8) |
| LJ12-40 | 12 | 40 | C20/1.75VPC | 198 | 7.80 | 166 | 6.54 | 169 | 6.65 | 169 | 6.65 | F4(M5) / F11(M6) |
| LJ12-40A | 12 | 40 | C20/1.75VPC | 198 | 7.80 | 166 | 6.54 | 169 | 6.65 | 169 | 6.65 | F4(M5) / F11(M6) |
| LJ12-55 | 12 | 55 | C20/1.75VPC | 229 | 9.02 | 138 | 5.43 | 211 | 8.31 | 216 | 8.50 | F15(M6) / F11(M6) |
| LJ12-55A | 12 | 55 | C20/1.75VPC | 229 | 9.02 | 138 | 5.43 | 211 | 8.31 | 216 | 8.50 | F15(M6) / F11(M6) |
| LJ12-65 | 12 | 65 | C20/1.75VPC | 350 | 13.78 | 167 | 6.57 | 182 | 7.17 | 182 | 7.17 | F5(M8) / F11(M6) |
| LJ12-80 | 12 | 80 | C20/1.75VPC | 350 | 13.78 | 167 | 6.57 | 182 | 7.17 | 182 | 7.17 | F5(M8) / F11(M6) |
| LJ12-100S | 12 | 100 | C20/1.75VPC | 306.5 | 12.07 | 168.5 | 6.63 | 210 | 8.27 | 215 | 8.46 | F15(M6) / F12(M8) |
| LJ12-100SA | 12 | 100 | C20/1.75VPC | 306.5 | 12.07 | 168.5 | 6.63 | 210 | 8.27 | 215 | 8.46 | F15(M6) / F12(M8) |
| LJ12-100 | 12 | 100 | C20/1.75VPC | 328 | 12.91 | 172 | 6.77 | 215 | 8.46 | 220 | 8.66 | F5(M8) / F12(M8) |
| LJ12-100A | 12 | 100 | C20/1.75VPC | 328 | 12.91 | 172 | 6.77 | 215 | 8.46 | 220 | 8.66 | F5(M8) / F12(M8) |
| LJ12-120 | 12 | 120 | C20/1.75VPC | 407 | 16.02 | 177 | 6.97 | 225 | 8.86 | 225 | 8.86 | F5(M8) / F12(M8) |
| LJ12-120A | 12 | 120 | C20/1.75VPC | 407 | 16.02 | 177 | 6.97 | 225 | 8.86 | 225 | 8.86 | F5(M8) / F12(M8) |
| LJ12-120S | 12 | 114 | C20/1.75VPC | 328 | 12.91 | 172 | 6.77 | 215 | 8.46 | 220 | 8.66 | F5(M8) / F12(M8) |
| LJ12-120SA | 12 | 114 | C20/1.75VPC | 328 | 12.91 | 172 | 6.77 | 215 | 8.46 | 220 | 8.66 | F5(M8) / F12(M8) |
| LJ12-134 | 12 | 134 | C20/1.75VPC | 340 | 13.39 | 173 | 6.81 | 280 | 11.02 | 287 | 11.30 | F5(M8) / F12(M8) |
| LJ12-145 | 12 | 145 | C20/1.75VPC | 340 | 13.39 | 173 | 6.81 | 280 | 11.02 | 287 | 11.30 | F5(M8) / F12(M8) |
| LJ12-150 | 12 | 150 | C20/1.75VPC | 483 | 19.02 | 170 | 6.69 | 241 | 9.49 | 242 | 9.53 | F5(M8) / F12(M8) |
| LJ12-150A | 12 | 150 | C20/1.75VPC | 483 | 19.02 | 170 | 6.69 | 241 | 9.49 | 242 | 9.53 | F5(M8) / F12(M8) |
| LJ12-160 | 12 | 160 | C20/1.75VPC | 532 | 20.94 | 207 | 8.15 | 214 | 8.43 | 219 | 8.62 | F16(M8) / F12(M8) |
| LJ12-160A | 12 | 160 | C20/1.75VPC | 532 | 20.94 | 207 | 8.15 | 214 | 8.43 | 219 | 8.62 | F16(M8) / F12(M8) |
| LJ12-180 | 12 | 180 | C20/1.75VPC | 532 | 20.94 | 207 | 8.15 | 214 | 8.43 | 219 | 8.62 | F16(M8) / F12(M8) |
| LJ12-180A | 12 | 180 | C20/1.75VPC | 532 | 20.94 | 207 | 8.15 | 214 | 8.43 | 219 | 8.62 | F16(M8) / F12(M8) |
| LJ12-190 | 12 | 190 | C20/1.75VPC | 532 | 20.94 | 207 | 8.15 | 214 | 8.43 | 219 | 8.62 | F16(M8) / F12(M8) |
| LJ12-190H | 12 | 190 | C20/1.75VPC | 532 | 20.94 | 207 | 8.15 | 214 | 8.43 | 219 | 8.62 | F16(M8) / F12(M8) |
| LJ12-200 | 12 | 200 | C20/1.75VPC | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 224 | 8.82 | F16(M8) / F10(M8) |
| LJ12-200A | 12 | 200 | C20/1.75VPC | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 224 | 8.82 | F16(M8) / F10(M8) |
| LJ12-225 | 12 | 225 | C20/1.75VPC | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 224 | 8.82 | F16(M8) / F10(M8) |
| LJ12-230 | 12 | 230 | C20/1.75VPC | 521 | 20.51 | 269 | 10.59 | 204 | 8.03 | 209 | 8.23 | F10(M8) |
| LJ12-260 | 12 | 260 | C20/1.75VPC | 521 | 20.51 | 268 | 10.55 | 220 | 8.66 | 225 | 8.86 | F14(M8) |
| LJ12-260H | 12 | 260 | C20/1.75VPC | 521 | 20.51 | 268 | 10.55 | 220 | 8.66 | 225 | 8.86 | F14(M8) |
| LJ2-200 | 2 | 200 | C10/1.80VPC | 171 | 6.73 | 111 | 4.37 | 328 | 12.91 | 340 | 13.39 | F10(M8) |
| LJ2-250 | 2 | 250 | C10/1.80VPC | 171 | 6.73 | 111 | 4.37 | 328 | 12.91 | 340 | 13.39 | F10(M8) |
| LJ2-300 | 2 | 300 | C10/1.80VPC | 170 | 6.69 | 150 | 5.91 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-400 | 2 | 400 | C10/1.80VPC | 170 | 6.69 | 150 | 5.91 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-500 | 2 | 500 | C10/1.80VPC | 211 | 8.31 | 172 | 6.77 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-600 | 2 | 600 | C10/1.80VPC | 241 | 9.49 | 172 | 6.77 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-800 | 2 | 800 | C10/1.80VPC | 301 | 11.85 | 172 | 6.77 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-1000 | 2 | 1000 | C10/1.80VPC | 410 | 16.14 | 172 | 6.77 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-1200 | 2 | 1200 | C10/1.80VPC | 473 | 18.62 | 172 | 6.77 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-1500 | 2 | 1500 | C10/1.80VPC | 355 | 13.98 | 337 | 13.27 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-2000 | 2 | 2000 | C10/1.80VPC | 476 | 18.74 | 337 | 13.27 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-2500 | 2 | 2500 | C10/1.80VPC | 476 | 18.74 | 337 | 13.27 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
| LJ2-3000 | 2 | 3000 | C10/1.80VPC | 696 | 27.40 | 340 | 13.39 | 330 | 12.99 | 342 | 13.46 | F10(M8) |
