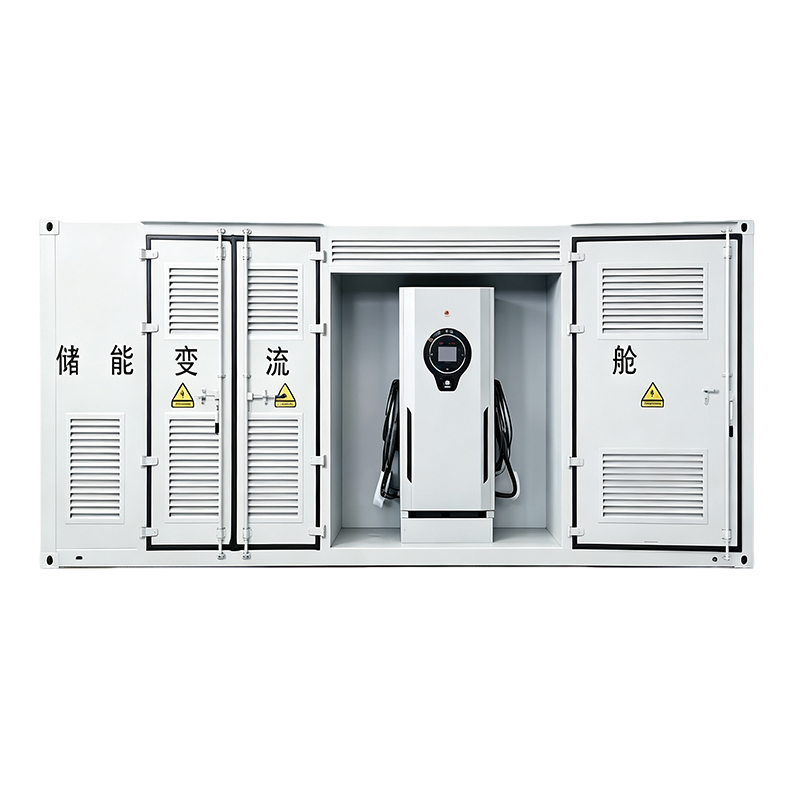

The energy storage converter and booster integrated cabin includes converter system, power transformation system, photovoltaic system and charging system. It realizes energy conversion between energy-storage batteries, photovoltaics and the grid.During the low-period of electricity consumption, wind power and photovoltaic energy can be stored in the battery unit. During the peak period of electricity consumption or power grid loss, it can be used as a power supply to effectively solve the volatility and intermittency of new energy generation such as wind and light. It improves the utilization efficiency of renewable energy and realizes peak-shaving and valley-filling for power grid system. Meanwhile, the integrated cabin integrates car-charging-pile function, providing stable, efficient and reliable charging power for new-energy vehicles.Product FeaturesThis energy storage converter booster integrated cabin is mainly composed of high-low voltage unit, local monitoring unit, bidirectional energy-storage converter unit, access control unit, heat dissipation unit, fire unit and lighting unit. It integrates DC inverter and AC boost function, adopting standard 10ft /20ft prefabricated cabin structure. It features beautiful appearance, easy installation and simple debugging.The unique design adapts to sea elevation, cold, seaside, desert and other complex harsh environments. It adopts electric-core-grade intelligent temperature control to improve system efficiency and battery cycle life. Modular design supports automatic balance management, convenient for system expansion and control. Multi-condition monitoring and hierarchical linkage design fully guarantee battery-system safety. PACK fire-protection design provides timely warning and accurate fault location in the early thermal-runaway stage of battery cells.Conditions of Use

1. Installation location: outdoor

2. Altitude: ≤4500m (＞2000m customized for high altitude)

3. Maximum ambient temperature: +45℃

4. Maximum average monthly temperature: +35℃

5. Maximum average annual temperature: +20℃

6. Minimum ambient temperature: -40℃ (outdoor)

7. Maximum daily temperature difference: 25℃

8. Sunshine intensity: 0.1W/cm² (0.5km/s)

9. Pollution level: III

10. Waterproof rating: Level 4

11. Tilt of the installation site: no more than 3 degrees

12. Relative humidity: Maximum monthly average 90%(20℃); Maximum daily average 50%(20℃)

13. Earthquake resistance: magnitude 8

14. Protection level: IP33D, IP54

15. Implementation standards: GB/T 17467, High-Voltage/Low-Voltage Pre-installed Substation
